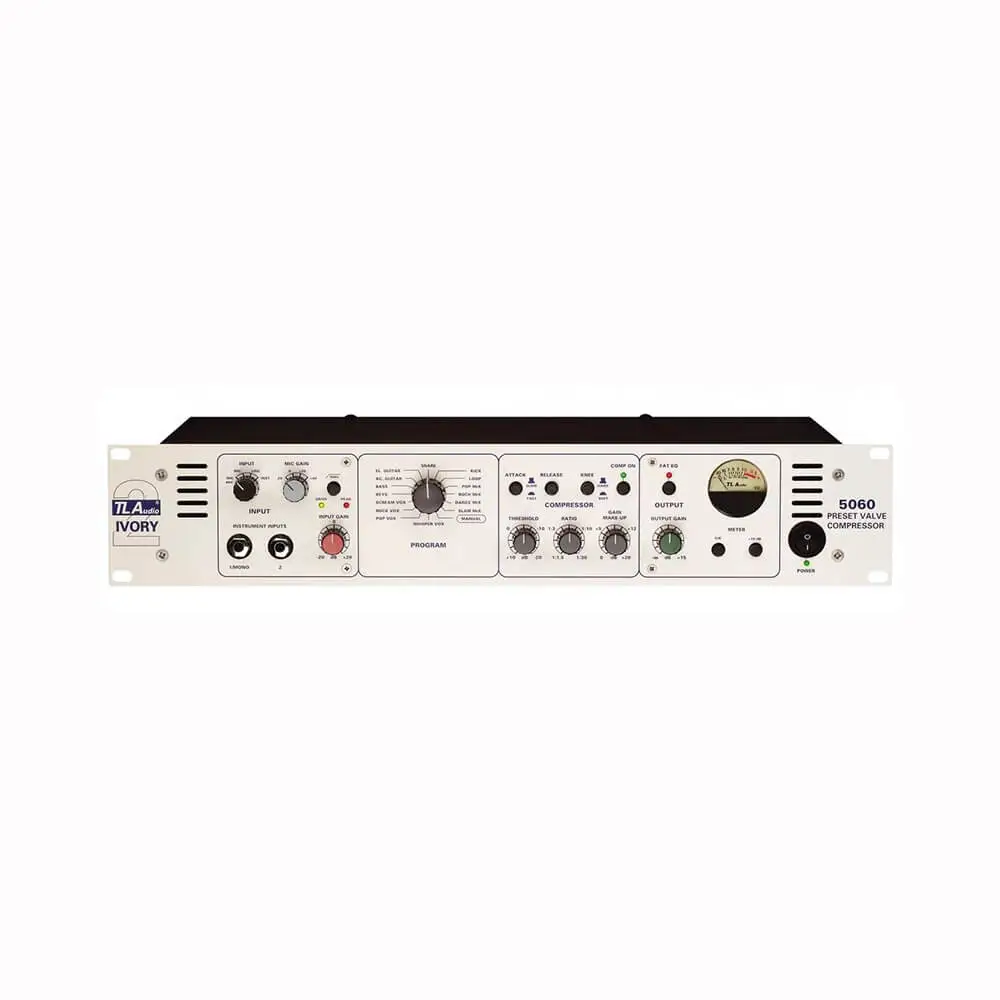

TL Audio 5060 Ivory 2

Main Features

Valve preamp stage with mic, line and front panel instrument inputs

Compressor with 15 presets and a manual mode with user adjustable controls

Hi-pass 90Hz filter on the input stage with �Fat EQ� contour at the output stage

VU metering of output level, output level +10dB and compressor gain reduction

One set of controls for mono or stereo use

Automatic linking for stereo signals

24-bit digital interfacing via the optional DO-2 digital output card

Specifications

Preamp

Input Gain +16 to +60dB (mic input), -20 to +20dB (line input)

Compressor

Threshold: +10 to �20dB

Ratio: 1:1.5 to 1:30

Attack: 0.5 or 5ms

Release: 0.2 or 1.5s

Gain Make Up: 0 to +20dB

Fat EQ +2dB @ 50Hz

-0.9dB @ 720Hz

+1.8dB @ 10kHz

Master Section Output Gain: -� to +15dB

PSU

Internally adjustable for 230V 50Hz or 115V 60Hz operation

Typical Consumption: 30VA

Dimensions

W: 483 x H: 88 x D: 200mm (2U 19" rack mounting)
